Central Dust Collection

S-Series Dust Collector

S-500, S-750, S-1000

Manufacturer: Nederman (Helsingborg, Sweden)

Type: NFPA Compliant Enclosure-less Dust Collector. Compact, Quiet, Indoor.



Industry: Woodworking

Materials:

Wood

Plastic

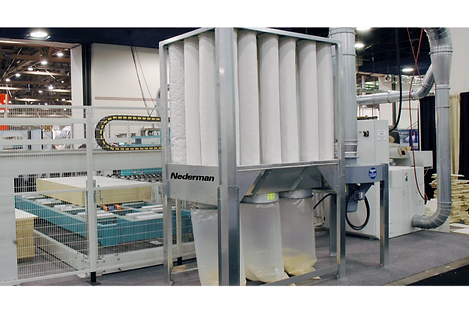

Silent operating dust collector for wood dust applications

The S-Series dust collector is an enclosure-less, silent, and simple to set up dust collector for your wood dust collection needs. Ideal for indoor installation, the S-Series is available in three sizes, the S-500, S-750, and S-1000, with an operating capacity of up to 5000 CFM. The fan operates at a low rpm resulting in quieter operation compared to competing indoor dust collection systems. It is equipped with the Super Bag filter, which is safe for use with wood dust and is 99% efficient.

  • Silent operation

  • Safe for indoor installation

  • Simple setup

  • Simple maintenance



NFZ 3000 Series

Dust Collector

NFPZ, NFSZ, NFKZ

Manufacturer: Nederman (Helsingborg, Sweden)

Type: Outdoor Baghouse Dust Collector

Industry: Woodworking: Small (NFPZ), Medium (NFSZ), Large (NFKZ)

Materials:

Wood

Plastic

-NFPZ3000 Baghouse Dust Collector with Container-

Handles Air Volumes From 1,000 – 12,000 CFM

Designed for small and medium-sized woodwork shops producing limited volumes of material. It is a modular dust collector made of galvanized steel sheet with a telescopic support, suitable for outdoor use.

The material removed is separated in the filter hopper and collected in metal containers. The filter can be supplied either for continuous operation or with a break to clean the filter bags every four hours.

Available in two different widths, type E 1200 mm (47") and type J 2400 mm(94"). Each module of the filter design is fitted with a combined inspection and explosion relief door. Filter cleaning with regeneration fans. The filter is fitted with the unique patented SUPERBAG.

-NFSZ3000 Baghouse Dust Collector With Rotary Valve-
Handles Air Volumes From 1,000 - 38,000 CFM

 Designed for medium air volumes and can handle large material concentrations. It is a modular dust collector made of galvanized steel sheet with a telescopic support, suitable for outdoor use.

The medium-sized/large particles are separated in the filter hopper and the inlet section (optional), and the air is then distributed to the filter bags. The collected material is discharged via the rotary valve. The rotary valve is used for non-pressurized material discharge to a silo, container, or separate transport system. The filter can be supplied either for continuous operation or with a break to clean the filter bags every four hours

Available in two different widths, type E 1200 mm (47") and type J 2400 mm(94"). Each module of the filter design is fitted with a combined inspection and explosion relief door. Filter cleaning with regeneration fans. The filter is fitted with the unique patented SUPERBAG.

-NFKZ 3000 Baghouse Dust Collector With Chain Conveyor-

Handles Air Volumes From 3,500 - 294,000 CFM
Suitable for handling large volumes of air with heavy material contamination levels. It is a modular filter made of galvanized steel sheet. The filter has telescopic support and is suitable for outdoor use. Each module, 2400 mm (94") of the filter design is fitted with a combined inspection and explosion relief door. Filter cleaning with regeneration fans. The filter is fitted with the unique patented SUPERBAG. The filter hopper and inlet section (optional) separates medium-sized/large particles and distributes the air to the filter bags. A double chain conveyor on the bottom of the hopper passes the collected material to a rotary valve for discharge.




FMC Dust Collector

Manufacturer: Nederman (Helsingborg, Sweden)

Type: Indoor/Outdoor, Cartridge Filter Dust Collector

Industry: Woodworking: For Fine Dust / Fumes

Materials:

Wood

Metal

Plastic

Composite

Compact cartridge filter for solving dust problems within a wide range of industries

Handles Air Volumes From 700 - 12,500 CFM

The FMC Dust Collector offers many operational benefits thanks to its compact design and patented UniClean® system. The special design of UniClean® cartridges guarantees consistent and effective cleaning. The FMC filters are designed for air volumes between 1,200-21,000 m3/h (700 - 12,500 CFM) containing different types of dust. The FMC filters can be fitted with different types of filter cartridges, positioned vertically to prevent dust building up on the filter material.
