Manufacturer: Altendorf (Germany)
Type: Pre-Milling, Top / Bottom Trimming Edgebander
Industry: Cabinets, Furniture
Materials:
Wood
Plastic
Any American company that is in need of new edgebanding technology should consider the many merits of the F series. Each machine offers convenient touch-screen operated control units, for example. What's more, the Altendorf edgebander F series also comes with many optional accessories that can be chosen to ensure buyers obtain just the sort of product they need to meet their specific requirements. As such, the Altendorf F type edgebanders are thoroughly practical as well as being suited to all sorts of CNC operations and other high-tech applications.
In short, these machines offer all of the engineering excellence you would expect of our famous panel saws because they blend high-performance traits with unbeatable reliability. Businesses that have already invested in one of the superb edge machine products in the F series from Altendorf have already gotten used to their many standard features.
For example, each machine in the F type range includes a milling unit. This can be used for pre-milling or milling and will work in conjunction with a standard trim saw, too, if wanted. There again, a conveyor chain with permanently attached special links is supplied with every F type machine, too. You will also get used to distinctive features like a low-maintenance, Teflon-coated glue pot, which is fast to heat up and ensure edges always make good contact when being worked on. The F series of edgebander technology also benefits from a double roller overhead pressure system, which makes use of a clever ball-bearing mounting. In addition, every Altendorf F series edgebander has a pneumatic roll cutting station – good news for anyone who will be using their system repeatedly every single day.
K Series
Manufacturer: Altendorf (Germany)
Type: Pre-Milling, Top / Bottom Trimming Edgebander
Industry: Cabinets, Furniture
Materials:
Wood
Plastic
Composite
There are currently three models in the K range to choose from, the K 33, the K 36, and the K 37. All three are CNC compatible and come equipped with a 10-inch PLC control with a touch-screen. Other standard features across the range include diamond-tipped milling aggregates and a top side, fast-heating glue pot. Top and bottom trimming comes as standard as does a corner rounding unit and a trim saw.
K 33: PROVEN IN THE JOINERY WORLD
To begin with, the K 33 edgebander comes with a pot interchange mount, including an adhesive interchanger for PUR processing as standard as well as a handy support plate for processing edge material effectively. There is also an automatic central lubrication system which helps to keep the unit's trim saw and corner rounding unit in mint condition even in warm working conditions. Optional extras include an Airtronic system which helps to maintain good contact between the K 33's surface scraper and the item being processed.
K 36: YOUR PERFORMANCE PLUS – POWERFUL AND ROBUST
Slightly larger, at approx 3,745 lbs, the K 36 is purpose-built for industrial levels of edge banding day and night. This particular machine has all the power capability you might need, with about 14 kW delivering a rapid feed rate of up to 10 meters per second. Easy to service and maintain, the K 36 has a visual display for workpiece sequencing that comes as standard. Optional features include a grooving saw unit and a useful top and bottom trimming system that allows users to double up their processes. Of the three machines in the K range, the K 36 is the middle-sized option, with an overall length of 5,540 mm.
K 37: MAXIMUM POWER – MORE IS NOT POSSIBLE
Delivering the most power in the K range, the K 37 makes use of a 400 V, 3-phase, 50 Hz electrical connection. It is the biggest edgebander under the Altendorf brand with sufficient space for all available finishing equipment. Weighing approx two metric tonnes, the K 37 comes with the same rapid glue pot that the other machines in the range do. In addition, there are further standard features like a conveyor chain with permanently attached special links and a grooving saw. In terms of accessories, users can choose from options like a multi-radius profile scraper to ensure their edgebander truly meets all of their requirements.
Hand Guard
Manufacturer: Altendorf (Germany)
Type: Pre-Milling, Top / Bottom Trimming Edgebander
Industry: Cabinets, Furniture
Materials:
Wood
Plastic
Composite
There can be no two ways about it when it comes to the highest level of safety. But a system: HAND GUARD. The unique, two-camera early-recognition system not only protects your employees, but also safeguards your jobs and your cost estimation. We have done our job only when you have succeeded at your job.

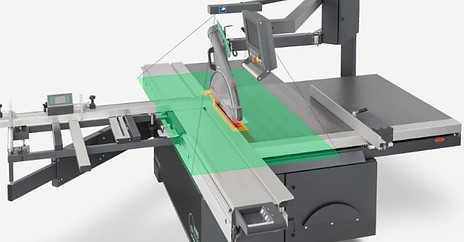

Two cameras collect data for hand recognition from a wide space around the saw blade. As soon as intruding hands are detected there, the sawing unit is quickly lowered and quickly stopped within a quarter of a second.
The F 45 ElmoDrive incorporates the most advanced and comprehensive control technology available for sliding table saws. The operating concept employs a large 12” touchscreen that enables you to select the axes and the software functions.
The Vario motors are manufactured and optimised specially for use in sliding table saws. They provide up to 20 % more torque than conventional electric motors without increasing power consumption.
The CNC rip fence has a traverse speed of 250 mm/s and an accuracy of ±1/10 mm. The high-precision five-point recirculating ball spindle system needs little maintenance and, along with the motor, is well protected by its integration into the aluminium profile.
