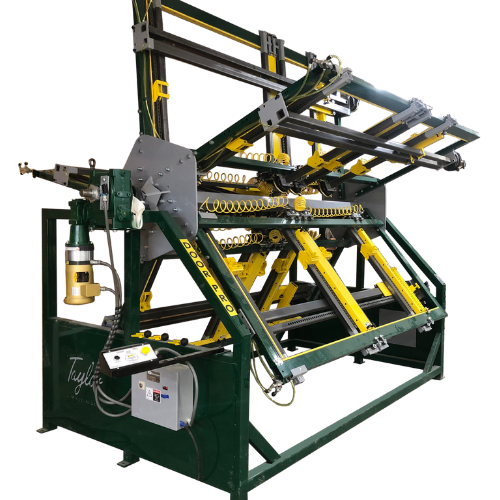

Large Capacity Door Pro

(5) Section Machine: 300+ Cabinet Doors per day

(8) Section Machine: 500+ Cabinet Doors per day

Price: Call 828-490-7716 for a quote

Large Capacity Door Pro

Features:

  • Clamp & Square Multiple Cabinet Doors with Vertical Center Rail (2) 36″ x 46″ Doors Side by Side Double Door Clamping.
    38″ x 96″ Doors with the Center Rail Removed

  • Heavy Duty Diaphragm Cylinders Provide up to 1500 lbs of Clamping per Clamp

  • Door Pro Frame is made of 100% Steel Construction

  • Electric Gear Motor Provides Counter Clockwise Rotation for Operator Safety

  • Single Button Control Box Activates Rotation and Includes Auto Index Feature

  • Precisely Square and Clamp Stile & Rail Doors

  • Includes a (1) Year Manufacturers Warranty


The Taylor Door Pro was a natural progression from the JLT Single Door Clamp. We have installed hundreds of machines in shops across North America. Machines come in (5) and (8) station models and some customers order an (8) station frame with (4) stations installed. This provides for easy expansion in the future.


(5) Section LCS Door Pro

The (5) Section Door Pro is designed for the small or medium shop that like to produce their own doors. Capable of clamping and curing doors quickly, this machine can be used for a few hours a day, or all day long, depending on the number of doors that need to be produced. Each Section has a center squaring bar, which adds an additional clamping area to the section, for another door of similar size. By removing that center bar, the full 38″ x 96″ capacity can be used for those Pantry Doors, End Panels, or Interior Doors.


How it Works:

In a typical door shop glue is applied to multiple parts and components assembled on an assembly table. The doors are placed in a section and clamps adjusted. The cylinders are activated by one valve which first creates side pressure pushing the door to the left side square, a second later the vertical clamps are activated to create pressure on the glue joints.

A motor drive is used to rotate the next section. The cured door is removed and new components are placed in that section for clamping. Our (5) section Door Pro can produce up to 300+ doors in an (8) hour shift. This equates to approximately 2.5 minutes per section and a clamping time of (12) minutes.


(8) Section LCS Door Pro

The (8) Section Taylor Door Pro clamping system is designed for the medium to large door shop that clamps either large door production runs or a kitchen at a time. Our design lends itself to fast changeovers, so switching from Door to Door easy and efficient. Each Section has a center squaring bar, which adds an additional clamping area to the section, for another door of similar size. By removing that center bar, the full 38″ x 96″ capacity can be used for those Pantry Doors, End Panels, or Interior Doors This will keep a high production rate in a one piece workflow style of manufacturing.


How it Works:

In a typical large door shop glue is applied to multiple parts and components assembled on an assembly table by an Operator. The door is placed in a section and clamps adjusted by a 2nd operator. The cylinders are activated by one valve which first creates side pressure pushing the door to the left side square, a second later the vertical clamps are activated to create pressure on the glue joints. The first operator works on the next batch of parts by applying glue and loosely assembling the door while the second operator quality checks the door under pressure and wipes away any excess glue.


A motor drive is used to rotate the next section. The cured door is removed and new components are placed in that section for clamping.

Our (8) section Door Pro can produce up to 500+ doors in an 8 hour shift. This equates to approximately 1.5 minutes per (2) doors and a clamping time of (12) minutes.
