Up Cut Saws
NT-UCS14 L or R
Up Cut Saw
Brochure
Contact Us
Manufacturer: Northtech
Type: Upcut Saw
Industry: Woodworking / Manufacturing (General)
Materials:
Wood
PRODUCT DIMENSIONS
• Max cutting capacity: 1" x 10-1/4", 2" x 9-3/8", 3" x 8", 3-1/2" x 5-3/4"
FEATURES
• 7.5HP motor, 3PH 230V with 24V magnetic controls
• 14” 100T carbide-tipped blade included
• 1” Saw arbor diameter
• Cycle operation: Pneumatically adjustable up to 78 cycles/minute
• Arbor RPM: 4260RPM
• Table size: 25” x 23-1/4”
• Fence dimensions: 2" x 25"
• Passline: 33-3/4"
• Quick access on the front of the machine to adjust blade stroke.
• Dust requirements: (2) 4" dust ports requiring 436 CFM at the point of extraction
• Amperage requirements: 230V 18.4 AMP / 460V 9.2 AMP
• Net / Gross weight: 548lbs / 685lbs
• Machine / Packing dimensions (LxWxH): 24" x 25" x 47 / 40" x 48" x 50"
• (1) Operation and Parts Manual included
• Warranty is one year parts
• Northtech offers a full line of dust collectors for any application.
• All machines are tested at our corporate headquarters in Indiana prior to shipment, providing a trouble-free start-up.
NT-UCS18
Up Cut Saw
Brochure
Contact Us
Manufacturer: Northtech
Type: Up Cut Saw
Industry: Woodworking / Manufacturing (General)
Materials:
Wood
PRODUCT DIMENSIONS
• Max cutting capacity: 1" x 13", 2" x 12", 3" x 11", 4" x 10"
FEATURES
• 10HP motor, 3PH 230V with 24V magnetic controls, 3600 RPM
• 18” 120T carbide-tipped blade included
• 1” Saw arbor diameter
• Cycle operation: Pneumatically adjustable up to 45 cycles/minute
• Table size: 26” x 27-1/4”
• Quick access on the front of the machine to adjust blade stroke
• Adjustable fence 2" x 25"
• Amperage requirements: 230V/460V 60HZ, 3PH: 24A/12A
• Dust requirements: (2) 4" dust ports requiring 436 CFM at the point of extraction
• Net / Gross weight: 730lbs / 860lbs
• Machine / Packing dimensions (LxWxH): 26" x 28" x 50" / 40" x 48" x 55"
• (1) Operation and Parts Manual included
• Warranty is one year parts
• Northtech offers a full line of dust collectors for any application.
• All machines are tested stateside prior to shipment, providing a trouble-free start-up.
NT-UCS18-AS
Aluminum Series Up Cut Saw
Manufacturer: Northtech
Type: Up Cut Saw
Industry: Signs, Aerospace, Boats, OEMs
Materials:
Metal
Brochure
Contact Us
PRODUCT DIMENSIONS
• Max cutting capacity: 1" x 13", 2" x 12", 3" x 11", 4" x 10"
FEATURES
• 10HP motor, 3PH 230V with 24V magnetic controls, 3600 RPM
• 18” 120T Aluminum Series blade included
• Full fence with zero-gap backer
• Left- or right-hand
• 1” Saw arbor diameter
• Cycle operation: Air (optional air/oil)
• Pressurized blade misting
• Chrome table for long life
• Quick access on the front of the machine to adjust blade stroke
• Integrated auxiliary starter system for NT-DC20
• Amperage requirements: 230V/460V 60HZ, 3PH: 24A/12A
• Dust requirements: (1) 4" dust port requiring 436 CFM at the point of extraction
• Net weight: 805 lbs.
• Gross weight: 965 lbs.
• Packing dimensions: (L) 48" x (W) 40" x (H) 50"
• Warranty is one year parts
• All machines are tested stateside prior to shipment, providing a trouble-free start-up.
NT-UCS20
Up Cut Saw
Brochure
Contact Us
Manufacturer: Northtech
Type: Up Cut Saw
Industry: Woodworking / Manufacturing (General)
Materials:
PRODUCT DIMENSIONS
• Max cutting capacity: 2" x 14", 3" x 13", 4" x 12", 5" x 11"
FEATURES
• 10HP motor, 3PH 230V/460V 60HZ with 24V magnetic controls
• 20” carbide-tipped blade included
• 1” Saw arbor diameter
• Cycle operation: Pneumatically adjustable up to 40 cycles/minute
• Quick access on the front of the machine to adjust blade stroke
• Safety interlocked blade access
• Table size: 26” x 29”
• Arbor RPM: 2800RPM
• Net / Gross weight: 772 lbs. / 904 lbs.
• Machine / Packing dimensions (LxWxH): 35" x 30" x 55" / 40" x (W) 48" x (H) 58"
• (1) 4" dust port requiring 436cfm at point of extraction
• (1) Operation and Parts Manual included
• Warranty is one year parts
• Northtech offers a full line of dust collectors for any application.
• All machines are tested stateside prior to shipment, providing a trouble-free start-up.
Wood

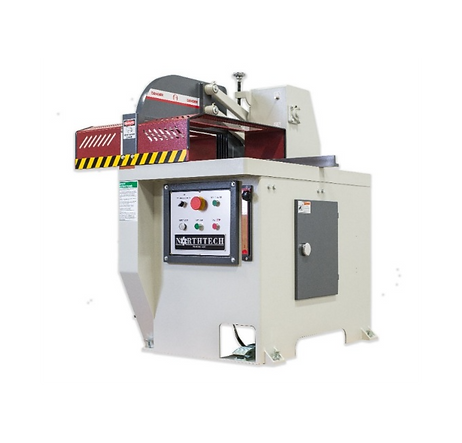

NT-CS24
Up Cut Saw
Brochure
Contact Us
Manufacturer: Northtech
Type: Up Cut Saw
Industry: Woodworking / Manufacturing (General)
Materials:
Wood
PRODUCT DIMENSIONS
• Max cutting capacity: 1" x 22"; 2" x 21"; 4" x 19"; 6” x 15”; 8” x 6”
FEATURES
• 15HP motor, 3PH 230V with 24V magnetic controls
• 24” 120T carbide-tipped blade (included)
• 1" saw arbor diameter
• Cycle operation: Pneumatically adjustable up to 26 cycles/minute
• Table size: 29” x 22”
• Quick access on the front of the machine to adjust blade stroke.
• Dust requirements: (2) 4" dust ports requiring 436CFM at points of extraction
• Net / Gross weight: 772lbs / 904lbs
• Machine / Packing dimensions (LxWxH): 45” x 32” x 56” / 49" x 37" x 60"
• (1) Tool box and manual
• Warranty is one year parts
• Northtech offers a full line of dust collectors and flexhose for any application.
• All machines are tested stateside prior to shipment, providing a trouble-free start-up.
NT-UCS24-AS Left or Right Hand
Aluminum Series Cut Off Saw
Manufacturer: Northtech
Type: Up Cut Saw
Industry: Signs, Aerospace, Boats, OEMs
Materials:
Metal
Brochure
Contact Us
PRODUCT DIMENSIONS
• Max cutting capacity: 1" x 22"; 2" x 21"; 4" x 19"; 6” x 15”; 8” x 6”
FEATURES
• 15HP motor, 3PH 230V with 24V magnetic controls
• 24” 120T carbide-tipped aluminum cutting blade (included)
• 30mm saw arbor diameter
• Infeed horizontal clamp
• Cycle operation: Air over hydraulic; up to 20 cycles/min
• Misting lubrication system
• With safety interlock on blade door
• Chrome table
• Zero clearance backer
• Table size: 29” x 22”
• Quick access on the front of the machine to adjust blade stroke.
• Dust requirements: (2) 4" dust ports requiring 450 CFM at points of extraction
• Net weight: 772 lbs.
• Gross weight: 904 lbs.
• Machine dimensions: (L) 60” x (W) 54” x (H) 55”
• Packing dimensions: (L) 48" x (W) 56" x (H) 72"
• (1) Tool box and manual
• Warranty is one year on parts
• Northtech offers a full line of dust collectors for any application.
• All machines are tested stateside prior to shipment, providing a trouble-free start-up.
NT-CS36
Up Cut Saw
Manufacturer: Northtech
Type: Up Cut Saw
Industry: Woodworking / Manufacturing (General)
Materials:
Wood
Brochure
Contact Us
PRODUCT DIMENSIONS
• Max cutting capacity:
* Without fence: 12” x 12”, 10” x 20”, 8” x 25”, 6” x 29”, 4” x 31”, 2” x 33”
* With fence: 13” x 8”, 12” x 12”, 10” x 20”, 8” x 24”, 6” x 25”, 4” x 27”, 2” x 28”, 1” x 29”
FEATURES
• Motor: 25HP 3PH 230V 60HZ; (1500 RPM).
• 36” carbide-tipped blade with 120T included
• 2” Saw arbor diameter
• Cycle operation: Pneumatically adjustable up to 14 cyles/minute
• Table size: 57-3/4” x 34-3/4”
• Safety interlock on blade door.
• Quick access on the front of the machine to adjust stroke.
• Amperage requirements: 230V/460V 3PH: 60A / 30A
• Dust collection requirements: (2) 5” dust ports requiring 681 CFM @ point of extraction
• Net / Gross weight: 2,605 lbs.
• Gross weight: 2,900 lbs.
• Machine / Packing dimensions (LxWxH): 66” x 58” x 78” / 63” x 45” x 80”
• (1) Operation and Parts Manual included
• Warranty is one year on parts
• All machines are tested at the factory prior to shipment, providing a trouble-free start-up.
NT-CS26RT
Up Cut Saw With Rotary Table
Manufacturer: Northtech
Type: Up Cut Saw
Industry: Woodworking / Manufacturing (General)
Materials:
Wood
Brochure
Contact Us
PRODUCT DIMENSIONS
• Max cutting capacity:
* Without fence: 12” x 12”, 10” x 20”, 8” x 25”, 6” x 29”, 4” x 31”, 2” x 33”
* With fence: 13” x 8”, 12” x 12”, 10” x 20”, 8” x 24”, 6” x 25”, 4” x 27”, 2” x 28”, 1” x 29”
FEATURES
• Motor: 25HP 3PH 230V 60HZ; (1500 RPM).
• 36” carbide-tipped blade with 120T included
• 2” Saw arbor diameter
• Cycle operation: Pneumatically adjustable up to 14 cyles/minute
• Table size: 57-3/4” x 34-3/4”
• Safety interlock on blade door.
• Quick access on the front of the machine to adjust stroke.
• Amperage requirements: 230V/460V 3PH: 60A / 30A
• Dust collection requirements: (2) 5” dust ports requiring 681 CFM @ point of extraction
• Net / Gross weight: 2,605 lbs.
• Gross weight: 2,900 lbs.
• Machine / Packing dimensions (LxWxH): 66” x 58” x 78” / 63” x 45” x 80”
• (1) Operation and Parts Manual included
• Warranty is one year on parts
• All machines are tested at the factory prior to shipment, providing a trouble-free start-up.
NT-CS-26RT-AS
Up-Cut Saw With Rotary Table
Aluminum Series
Manufacturer: Northtech
Type: Up Cut Saw
Industry: Signs, Aerospace, Boats, OEMs
Materials:
Metal
Brochure
Contact Us
• 90° crosscut with up to 60° angle cut
• Cut capacity (thickness x Width: See attached chart
FEATURES
• 10HP 3PH 230V/460V 60HZ arbor motor
• 26” carbide-tipped blade included
• Cycle Speed: Up to 12 cycles/min
• Air/Oil cycle operation
• Safety interlock on access door
• Quick access on front of the machine to adjust stroke speed
• Table: 46” x 46”
• Fence: 18” x 4” x 1.2”
• Passline: 41”
• (2) 4” dust ports requiring 436 CFM at each point of extraction
• (1) Operation and Parts Manual included
• Machine / Packing weight: 2,415lbs / 2,756lbs
• Machine dimensions: 70” x 56” x 83”
• Warranty is one year parts
• All machines are tested at our corporate headquarters in Indiana prior to shipment, providing a trouble-free start-up.
